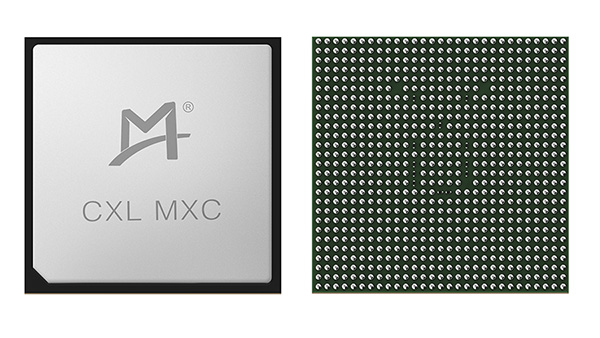

CXL® Memory eXpander Controller (MXC)

Description

The Memory eXpander Controller (MXC) is a Type 3 Compute Express Link® (CXL®) DRAM memory controller that delivers a high-bandwidth, low-latency interconnect between the CPU and CXL-based devices. It enables memory pooling and sharing across multiple hosts, streamline software stacks, and reduce total cost of ownership (TCO) for data centers.

Designed for deployment in Add-in Cards (AIC), Backplanes, or EDSFF memory modules, the MXC supports scalable memory expansion and bandwidth growth to address the needs of data-intensive workloads such as intelligent computing, deep learning, and machine learning.

For more information, please contact our sales & business development teams at globalsales@montage-tech.com.

MXC
CXL® Memory eXpander Controller (MXC)

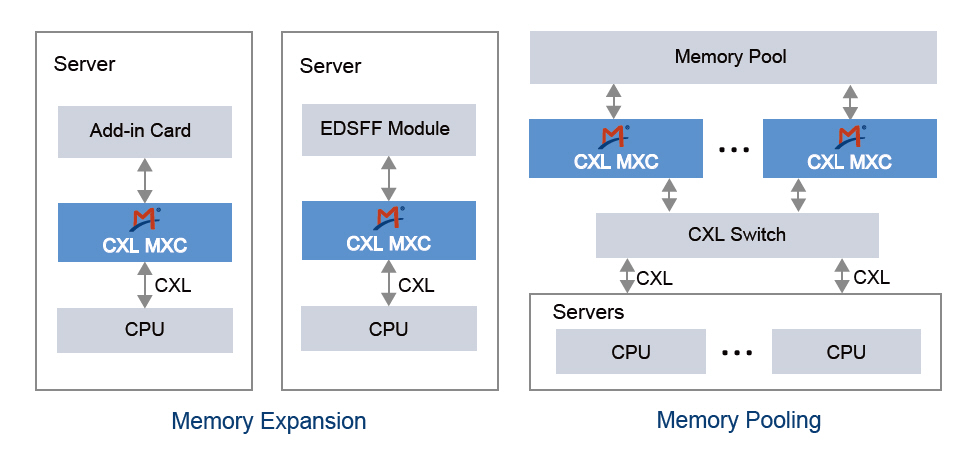

Typical Application Scenarios

MXC Application Scenarios

Product List

Part No.DescriptionCXL SpecDDR SpecApplicationPackage

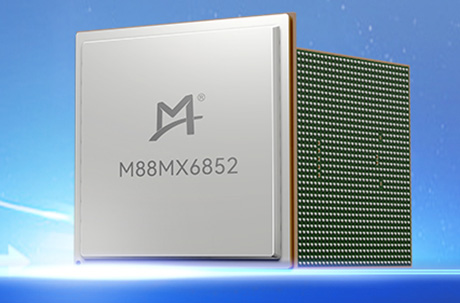

M88MX6852Type 3 CXL Memory eXpander ControllerCXL 1.1/2.0/3.1;
CXL x8 lanes;
Speed up to 64 GT/s
JEDEC DDR5Memory Add-In Cards;
EDSFF Memory Modules
1211-ball FCCSP

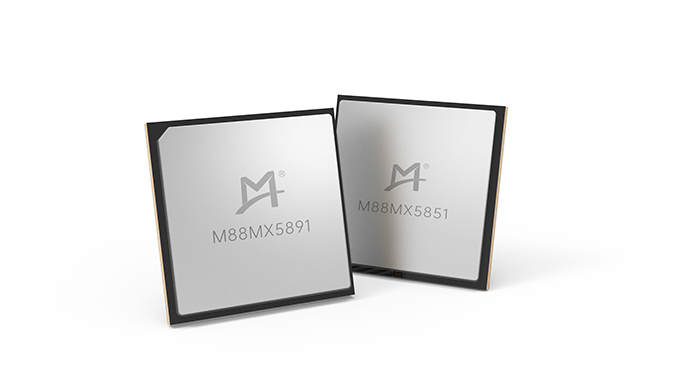

M88MX5891/5851Type 3 CXL Memory eXpander ControllerCXL 1.1/2.0;
CXL x8 lanes;
Speed up to 32GT/s
JEDEC DDR4/DDR5Memory Add-In Cards;
EDSFF Memory Modules
767-ball FCCSP
716-ball FCCSP
